Mounting Kits / Gooseneck Pedestal
Hurry! Only 12 Left in Stock!
$66.59
SKU: SCD-L-BOLT-KIT-SS-SAE
Steel Cut Design mounting kits engineered for gooseneck pedestal installations.
Use L-Bolts for new construction. Place into wet cement to install.
Use Stud Anchors for existing construction. Drill into dry concrete to install.
Made of #304 stainless steel (corrosion resistant).

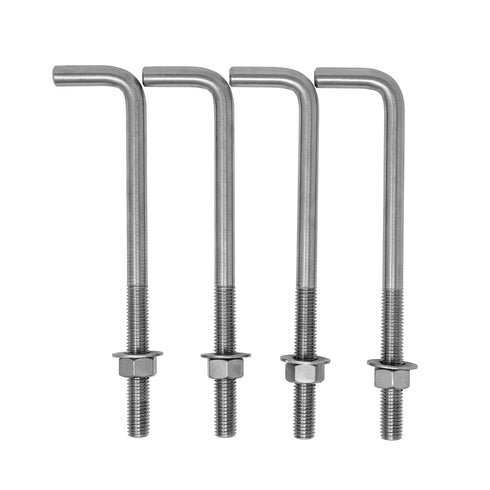

L-Bolt Specifications
| Diameter/Thread: | 5/8"-11 |
| Length: | 10" |
| Thread: | 3.75" |
| Anchor Hook Length: | 2.5" |

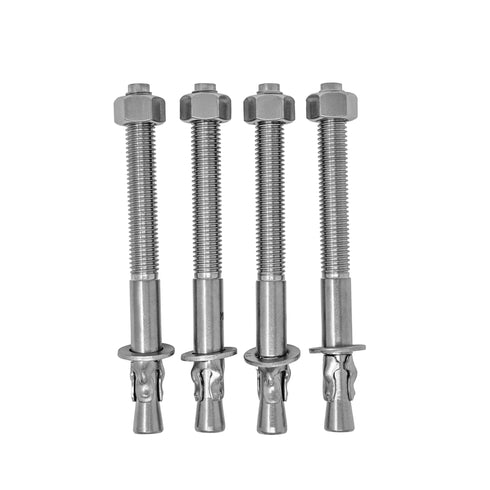

Stud Anchor Specifications
| Diameter/Thread: | 5/8"-11 |
| Length: | 7" |
| Thread: | 4.5" |
Documents
L-Bolt Kit - Install Guide PDF
Stud Anchor Kit - Install Guide PDF
Gate Entry Parts
The following components are required for a complete Control4 gate entry system.
| Manufacturer | Description |
| Control4 /2N / Savant | DS2 Door Station, Savant Door Station, 2N IP Verso (Not Included) |
| Steel Cut Design | Outdoor Housing (Not Included) |
| Steel Cut Design | Gooseneck Pedestal (Not Included) |
| Steel Cut Design | Mounting Kit (Included) |
Compatibility
- 2N IP Verso Flush Mount with Box for Installation in the Wall - 2 Modules
- Control4 DS2 Flush Mount with Back Box
- Savant Flush Mount Door Station with Back Box
