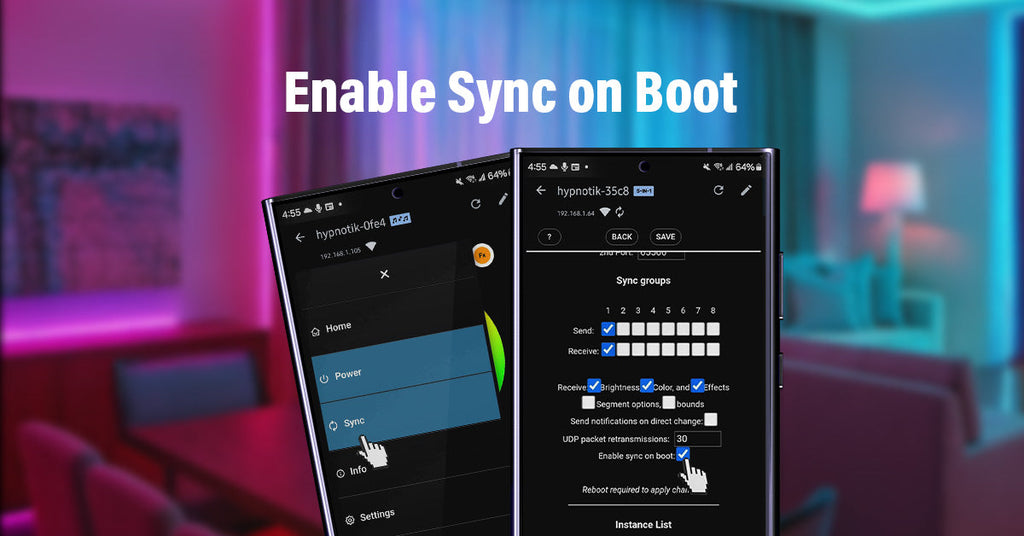

Enable Sync on Boot

Section: Settings → Sync Interfaces

Overview

The Enable Sync on Boot setting ensures the device automatically activates light synchronization as soon as it finishes starting up, without requiring manual intervention.

What It Does?

State	Behavior
Checked	The device starts sending and receiving light sync notifications immediately on boot, based on your current group configuration.
Unchecked	Light sync is off at boot — you must manually enable it from the web interface if needed.

When to Enable It

Enable Sync on Boot for:

Permanent installations where devices should always be synchronized from the moment they power on.
Venue installations that power on automatically (e.g., via a mains timer) where manual triggering is impractical.
Any unattended installation where devices must self-coordinate.

Leave it unchecked if:

You want manual control over when sync is active (e.g., only during specific events).
You are testing or troubleshooting and want to start with sync disabled.

Interaction with Sync Groups

Sync on Boot activates the Send/Receive configuration set in the Sync Groups table. The device will immediately start participating in its assigned groups.

How to Enable It?

1. Check & Enable “Sync” option in dashboard

In the Main Dashboard, tap the Settings icon and select Sync to enable the [Light-Sync] feature. The device will now act as a Sync-Master, broadcasting its current lighting settings to other enabled devices.

Step-1: Check & Enable “Sync” option in dashboard.

2. Enabling “Sync-on-boot” option

From the same menu, navigate to Settings → Sync Interface, then enable the Sync on Boot checkbox.

Step-2: Enabling “Sync-on-boot” option.

3. Save settings changes

Tap Save at the bottom of the page.

Step-3: Save the settings.

Changes take effect the next time the device is powered on or rebooted.

Ensure “Light-Sync” is active

1. Choose an Effect

In the Main dashboard, click the Effects icon at the bottom and select an effect (e.g., “Color loop”). Then, click the Presets icon at the bottom.

Step-1: Choose an Effect.

2. Setting up “Presets” option

Click +Preset. A menu will appear where you can rename the preset (e.g., “Color loop”). Set the ID and save it. Note: “Save to ID” must be greater than Zero (ID > 0).

Step-2: Setting up a Preset.

3. Navigating to “LED-Preferences”

Tap the Setting icon and navigate to Led-Preferences.

Step-3: Navigate to Led-Preference.

4. Apply the Preset-ID assigned before

Set the Preset-ID that you want to trigger automatically.

Step-4: Apply “Preset-ID” and save it.

5. Check “Sync” feature Using “Preset”

Navigate to Presets in the Dashboard and tap the preset listed (e.g., “Color loop”). Your devices should now synchronize based on the preset.
