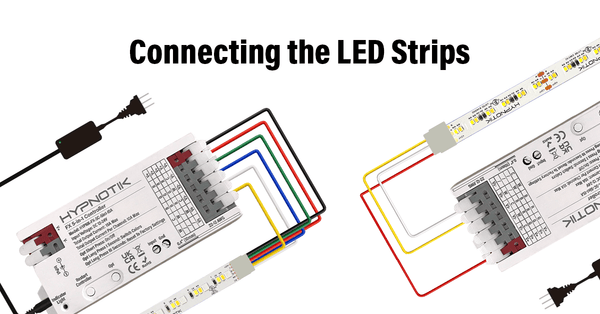

Connecting the LED Strips
Section: Basic Hardware Setup Overview This tutorial explains the general principles of connecting Hypnotik Vibe LED strips to the HYPNOTIK-FX controller. The exact wiring depends...
Hypnotik Manuals
Read our blogs below
Showing 33 articles

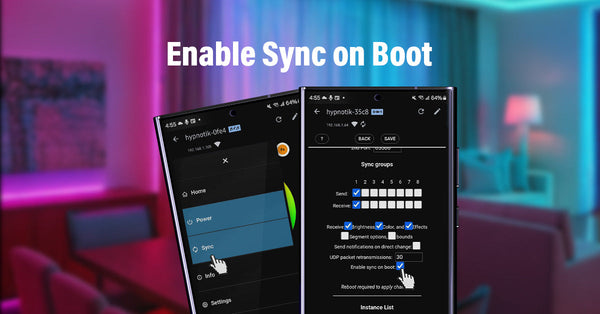

Enable Sync on Boot
Section: Settings → Sync Interfaces Overview The Enable Sync on Boot setting ensures the device automatically activates light synchronization as soon as it finishes starting...

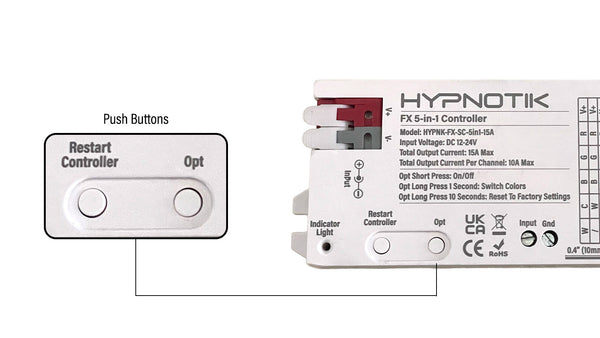

Using the Push Button
Section: Basic Hardware Setup Overview The Hypnotik FX controller has a physical push button on the enclosure. It provides basic control of the device —...

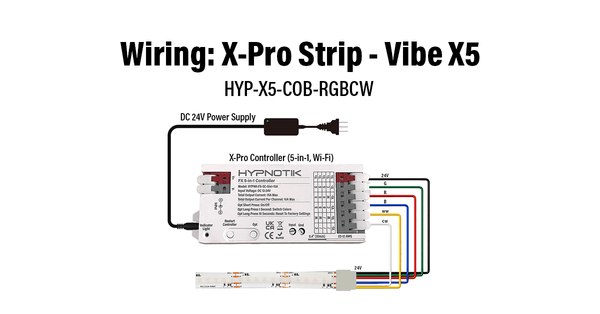

Wiring: Vibe X5 RGB + Tunable Zero-Dot
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Color + Tunable | SKU: HYP-X4-LU-RGBCW | Vibe Model: Ultra Color +...

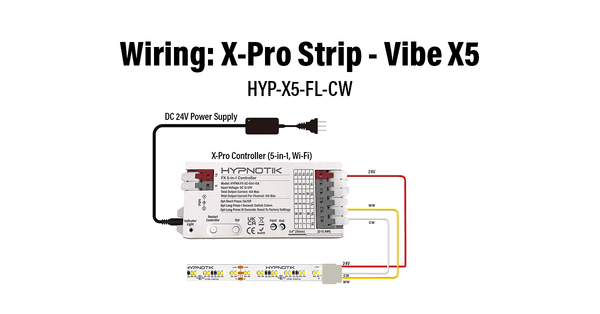

Wiring: Vibe X5 Tunable Fluid 2400K–5000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X5 Fluid Tunable | SKU: HYP-X5-FL-CW | Vibe Model: Fluid Tunable Strip Overview Specification...

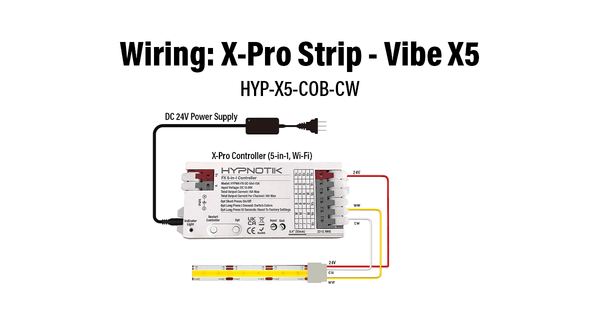

Wiring: Vibe X5 Tunable Zero-Dot
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X5 Zero-Dot Tunable | SKU: HYP-X5-COB-CW | Vibe Model: Zero-Dot Tunable Strip Overview Specification...

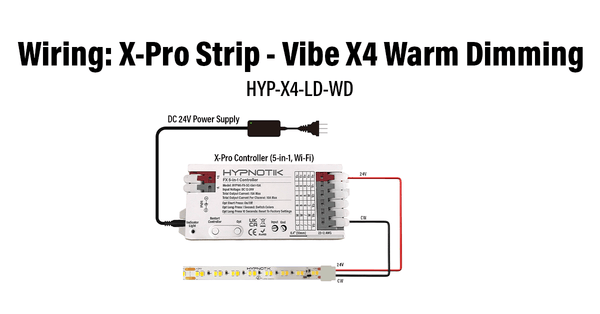

Wiring: Vibe X4 Deco 1800K–3000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Deco Warm Dimming | SKU: HYP-X4-LD-WD | Vibe Model: Deco Warm Dimming Strip...
Wiring: Vibe X4 Ultra 1800K–3000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Warm Dimming | SKU: HYP-X4-LU-WD | Vibe Model: Ultra Warm Dimming Strip...

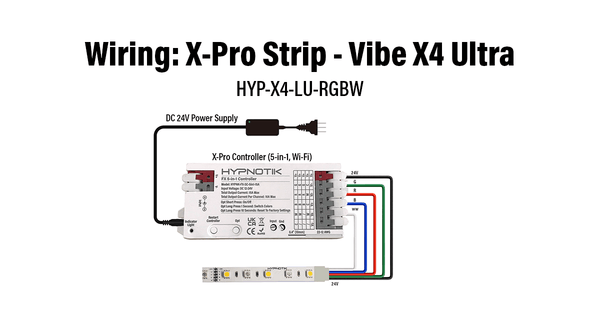

Wiring: Vibe X4 Ultra RGB + 3000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Color + White | SKU: HYP-X4-LU-RGBW | Vibe Model: Ultra Color +...

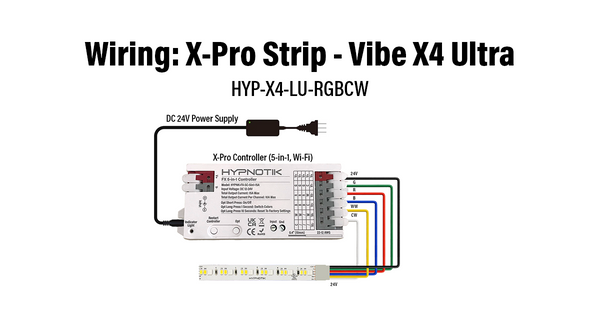

Wiring: Vibe X4 Ultra RGB + 2700K–6000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Color + Tunable | SKU: HYP-X4-LU-RGBCW | Vibe Model: Ultra Color +...

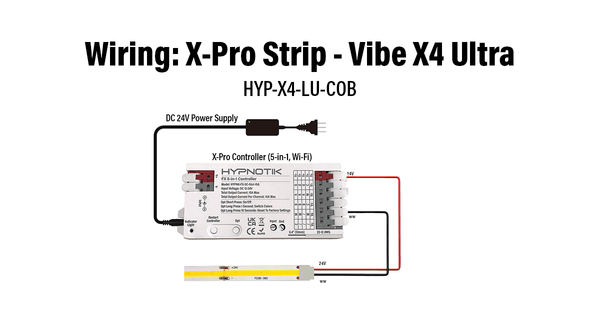

Wiring: Vibe X4 Ultra COB 2700K / 3000K / 4000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Zero-Dot White | SKU: HYP-X4-LU-COB | Vibe Model: Ultra Zero-Dot White Strip...

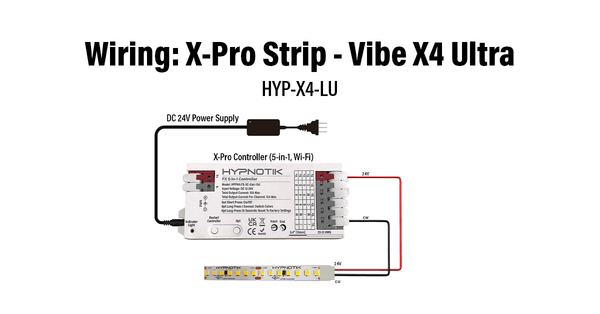

Wiring: Vibe X4 Ultra 2700K / 3000K / 4000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra White | SKU: HYP-X4-LU | Vibe Model: Ultra White Strip Overview Specification...

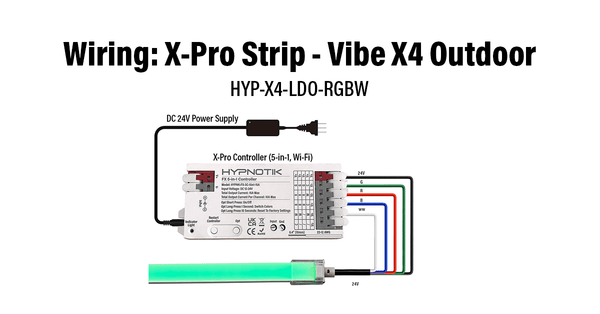

Wiring: Vibe X4 Deco RGBW
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Color + White | SKU: HYP-X4-LU-RGBW | Vibe Model: Ultra Color +...

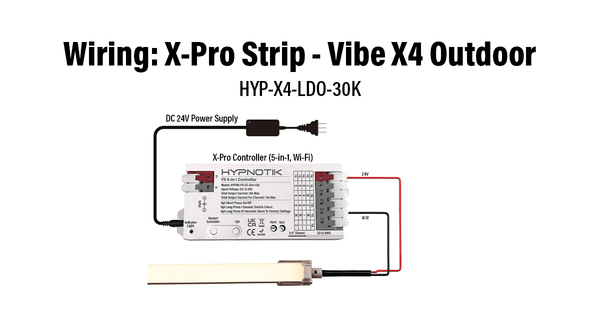

Wiring: Vibe X4 Deco 3000K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Deco 3000K | SKU: HYP-X4-LDO-30K | Vibe Model: Deco White Strip Overview Specification...

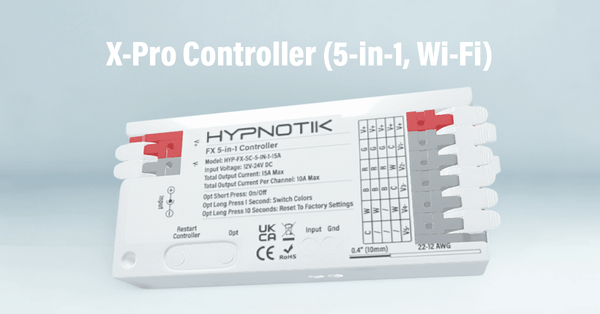

HYPNOTIK FX X-Pro Controller (5-in-1, Wi-Fi)
Section: Basic Hardware Setup | Product: HYP-FX-SC-5-IN-1-15A | Model: Hypnotik-FX-SC-5in1-15A Overview The Hypnotik FX X-Pro Controller (5-in-1) is the controller used with Vibe X4 and...

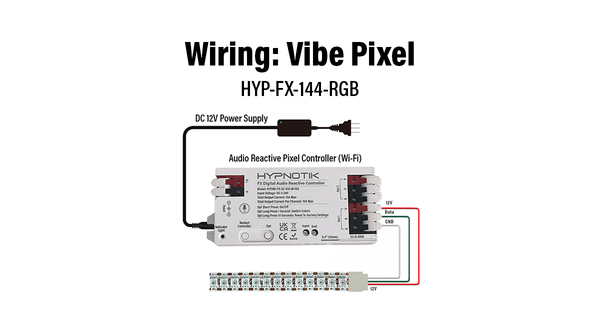

Wiring: Vibe Pixel 144LPM RGB
Section: Basic Hardware Setup | Controller: HYP-FX-SC-DIG-M-15A (DIG-ALED) | Strip: Vibe Pixel 144LPM RGB | SKU: HYP-FX-144-RGB Strip Overview Specification Value Easy Name Fluid Color...

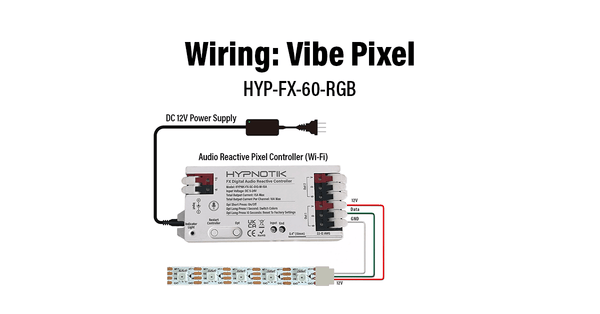

Wiring: Vibe Pixel 60LPM RGB
Section: Basic Hardware Setup | Controller: HYP-FX-SC-DIG-M-15A (DIG-ALED) | Strip: Vibe Pixel 60LPM RGB | SKU: HYP-FX-60-RGB Strip Overview Specification Value Easy Name Standard Color...

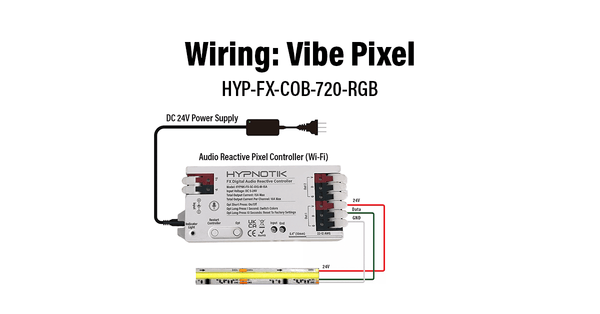

Wiring: Vibe Pixel COB 720LPM RGB
Section: Basic Hardware Setup | Controller: HYP-FX-SC-DIG-M-15A (DIG-ALED) | Strip: Vibe Pixel COB 720LPM RGB | SKU: HYP-FX-COB-720-RGB Strip Overview Specification Value Easy Name Zero-Dot...

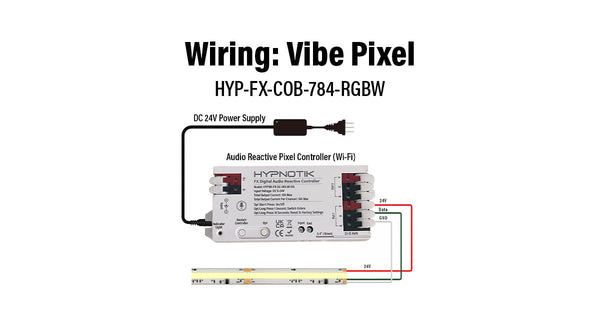

Wiring: Vibe Pixel COB 784LPM RGB + 2700K
Section: Basic Hardware Setup | Controller: HYP-FX-SC-DIG-M-15A (DIG-ALED) | Strip: Vibe Pixel COB 784LPM RGB + 2700K | SKU: HYP-FX-COB-784-RGBW Strip Overview Specification Value Easy...

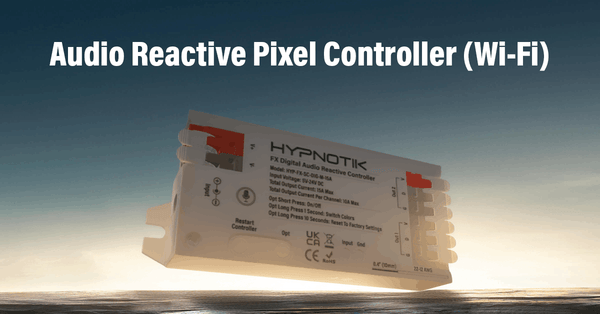

HYPNOTIK FX Audio Reactive Pixel Controller (Wi-Fi)
Section: Basic Hardware Setup | Product: HYP-FX-SC-DIG-M-15A | Model: Hypnotik-FX-SC-DIG-M-15A Overview The Hypnotik FX Audio Reactive Pixel Controller (DIG-ALED) is the controller used with all...

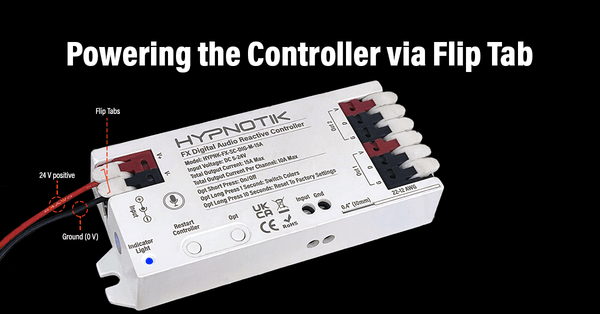

Powering the Controller via Flip Tab
Section: Basic Hardware Setup Overview The Hypnotik FX controller includes flip-up wire terminals (also called flip tabs) on the back of the enclosure. These accept...

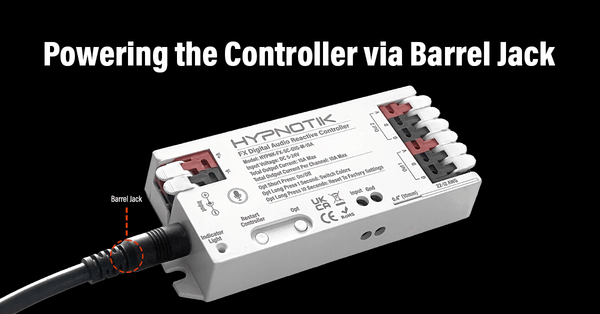

Powering the Controller via Barrel Jack
Section: Basic Hardware Setup Overview The Hypnotik FX controller has a barrel jack power input on its enclosure. This is the quickest way to connect...

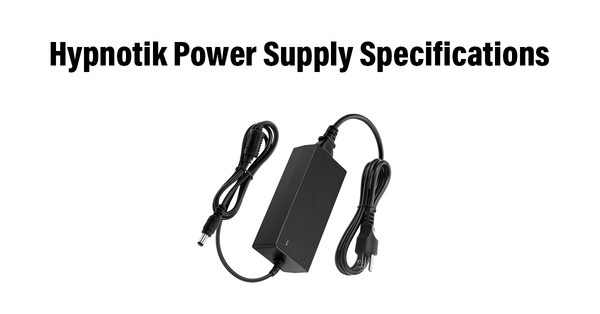

Hypnotik Power Supply Specifications
Section: Basic Hardware Setup Product: Hypnotik FX Power Supply · SKU: HYP-FX-PS-24V-6A Overview The Hypnotik FX Power Supply is a dedicated 24V DC power supply...

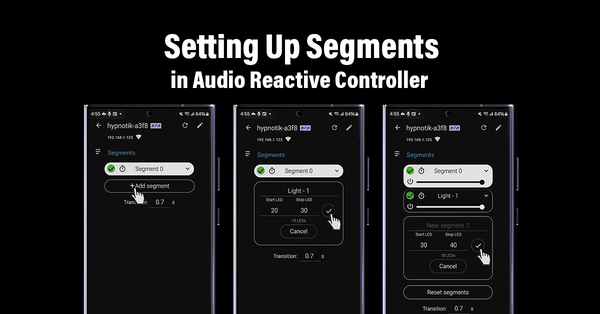

Hypnotik FX - Setting Up Segments in Audio Reactive Controller
Segments allow you to divide your LED strip into multiple sections. Each section can run different effects, directions, or audio-reactive patterns independently. This gives you...

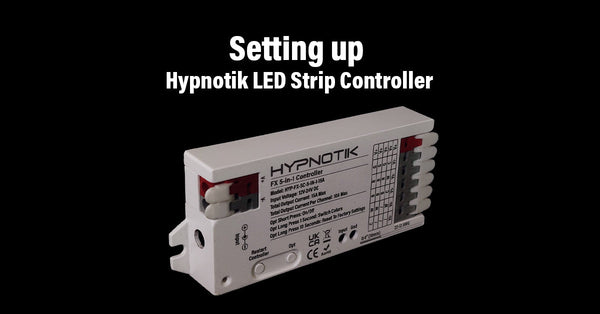

Hypnotik FX - Setting up Hypnotik LED Strip Controller
1. Connect to the Controller's Hotspot Open Wi-Fi Settings: Navigate to the Wi-Fi section on your smartphone. Select the Device: Look for a network named...

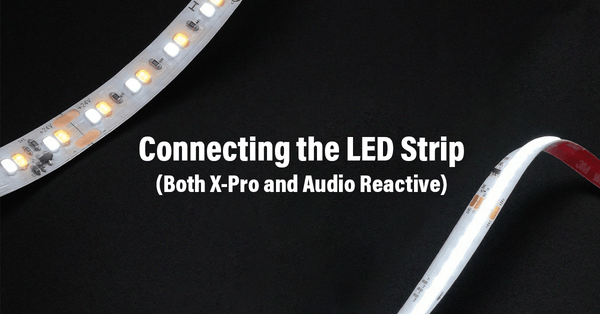

Hypnotik FX - Connecting the LED Strip (Both X-Pro and Audio Reactive)
1. Prepare the Controller Before inserting any wires, ensure the Flip-Up Tabs on the terminal block are in the fully open (up) position. This clears...

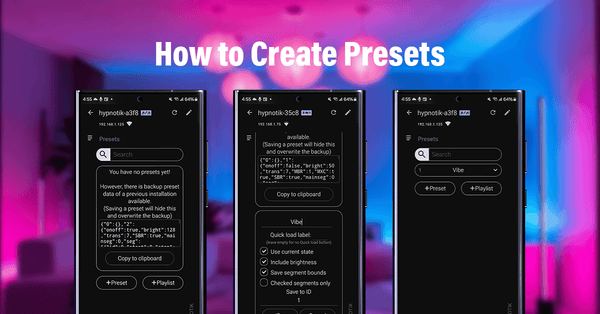

Hypnotik FX - How to Create Presets
1. Configure Your Look Before saving anything, you need to dial in your specific visual settings: Effects: Choose your desired animation or pattern. Brightness: Slide...

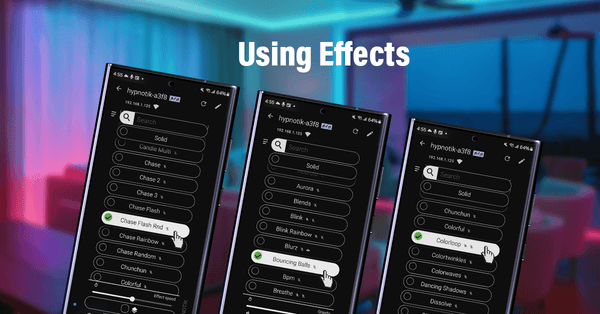

Hypnotik FX - Using Effects
1. Launch the App Open the Hypnotik FX App on your device and ensure it is synced to your lighting hardware. 2. Enter the Effects...

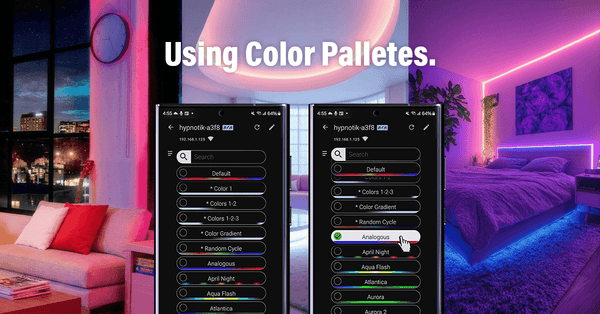

Hypnotik FX - Using Color Palletes.
1. Enter the Effects Section Open the app and navigate to the Effects Tab. 2. Identify "Palette-Ready" Effects Scroll through the available effects. Look for...

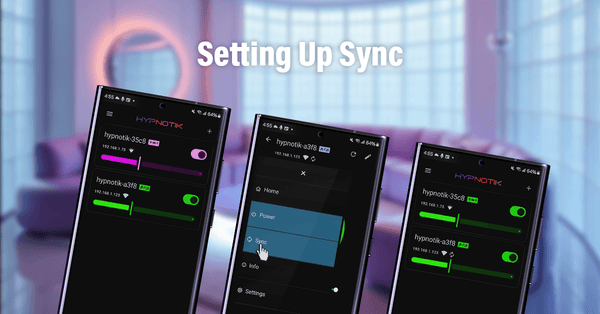

Hypnotik FX - Setting up Sync
1. Network Check Ensure two or more controllers are powered on and connected to the same Wi-Fi network. Open the Hypnotik App and verify that...

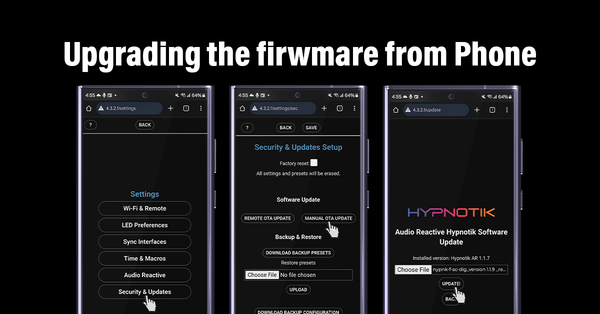

Hypnotik FX - Upgrading the firwmare from Phone
Update your Hypnotik FX controller directly from your Android phone via AP Mode. Download the latest binary from the website, then connect to the HYPNOTIK-XXXX...

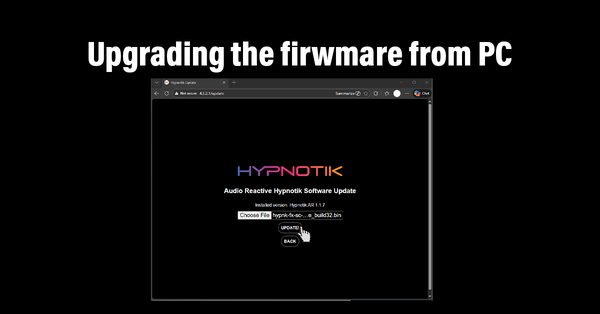

Hypnotik FX - Upgrading the firwmare from PC
To update your Hypnotik FX controller, download the latest binary from hypnotik.io, then connect your Windows PC to the HYPNOTIK-XXXX Wi-Fi network. Access the dashboard...
