Wiring: Vibe X4 Deco 3000K

Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Deco 3000K | SKU: HYP-X4-LDO-30K | Vibe Model: Deco White

---

Strip Overview

Specification	Value
Easy Name	Deco White
Color Type	Single White - 3000K fixed
Channels Used	1
Roll Length	5 meters (16.4 ft)
Voltage	24 V DC
Type	Vibe X4 analog PWM
Warranty	5 Years

This is a fixed 3000K warm white single-channel strip. Brightness is controlled by dimming the single white channel (PWM). There is no colour or colour temperature control.

---

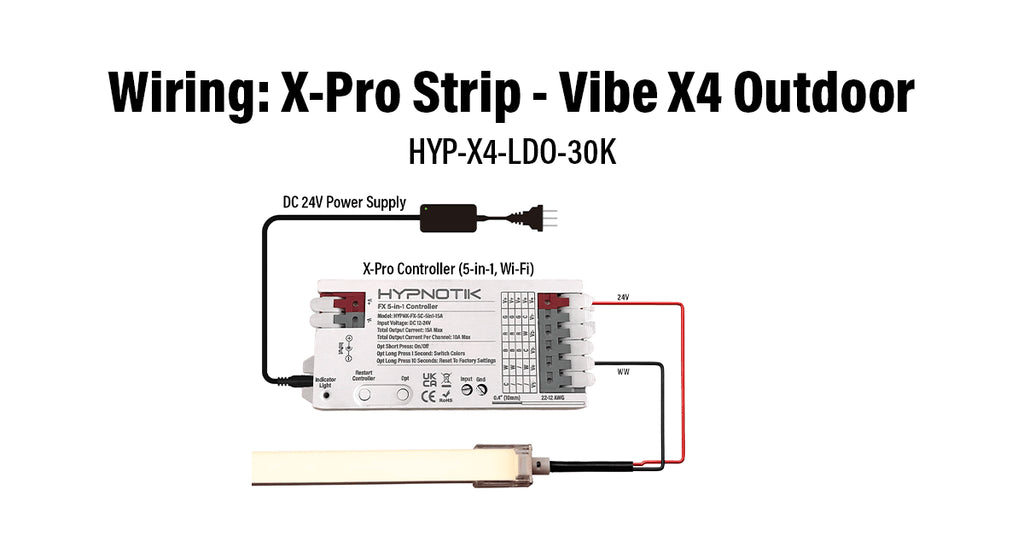

Wiring Diagram

Terminal Connections

X-Pro Terminal	Strip Wire	Description
+ (Common +24 V)	White +	Positive supply
CH4	White −	PWM controlled negative

Only 2 wires are used. Channels 1, 2, 3 & 5 remain unconnected for this strip.

---

Step-by-Step Connection

1. Power off the controller and power supply.
2. Connect the strip's positive (+) wire to the + terminal on the X-Pro.
3. Connect the strip's white channel (−) wire to the CH4 terminal.
4. Leave CH1, CH2, CH3 & CH5 terminals empty.
5. Verify connections, then power on.

---

Firmware Settings

Go to Settings → LED Preferences:

Setting	Value
LED Type	PWM White
Data Pin (CH4)	GPIO 16
LED Count	1 (single channel, not per-pixel)
