Wiring: Vibe X4 Ultra 1800K–3000K
May 12, 2026
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Warm Dimming | SKU: HYP-X4-LU-WD | Vibe Model: Ultra Warm Dimming
Strip Overview
| Specification | Value |
|---|---|
| Easy Name | Ultra Warm Dimming |
| Color Type | Warm Dimming — 1800K (dim) to 3000K (bright) |
| Channels Used | 1 (Warm + Neutral Warm) |
| Roll Length | 5 meters (16.4 ft) |
| Voltage | 24 V DC |
| Type | Vibe X4 analog PWM |
| Warranty | 5 Years |
The Ultra Warm Dimming strip mimics the natural behaviour of incandescent lamps — it shifts from a warm amber 1800K at low brightness to a neutral 3000K at full brightness. This is ideal for living spaces where a warm, cosy dimming curve is desired.

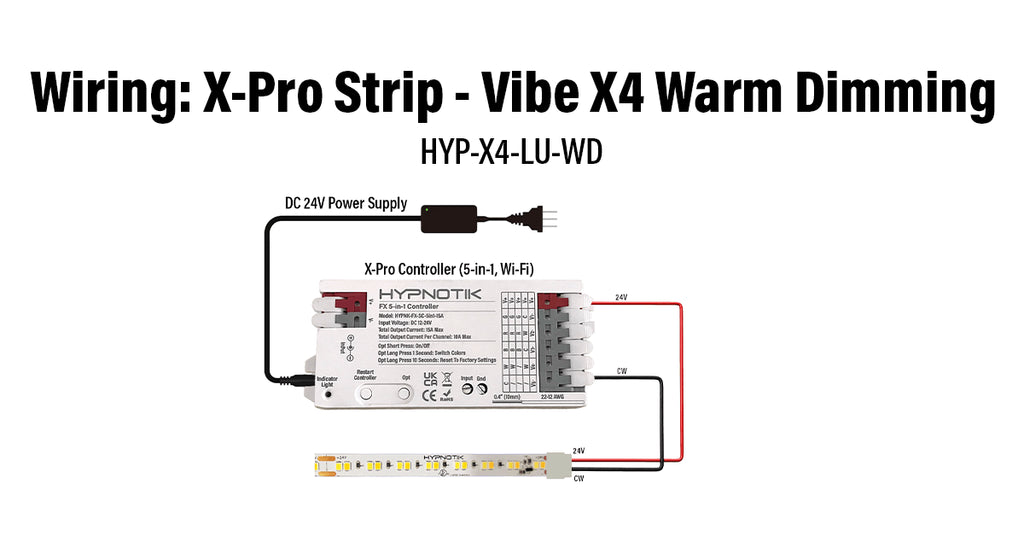

Wiring Diagram
Terminal Connections
| X-Pro Terminal | Strip Wire | Channel |
|---|---|---|
+ |
Strip common +
|
Positive supply |
CH4 |
Warm − (1800K-3000K) |
Warm White channel |
- CH1, CH2, CH3 & CH5 not used.
Step-by-Step Connection
- Power off the controller and power supply.
- Connect common (+) →
+terminal. - Connect 1800K warm (−) →
CH4. - Leave CH1, CH2, CH3 & CH5 empty. Power on.
Firmware Settings
Go to Settings → LED Preferences:
| Setting | Value |
|---|---|
| LED Type | PWM CCT |
| Ch4 Pin | GPIO 16 (Warm) |
| Default CCT | Set to mid-range |
How Warm Dimming Works
The CCT slider in the Colors tab controls the blend between the two channels. At the warm end of the slider, the strip outputs 1800K amber. At the cool end, it outputs 3000K. The transition is smooth and mimics the dimming curve of halogen and incandescent lamps.
