Wiring: Vibe X4 Deco 1800K–3000K
May 12, 2026
Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Deco Warm Dimming | SKU: HYP-X4-LD-WD | Vibe Model: Deco Warm Dimming
Strip Overview
| Specification | Value |
|---|---|
| Easy Name | Deco Warm Dimming |
| Color Type | Warm Dimming — 1800K to 3000K |
| Channels Used | 1 (Warm ~ Neutral Warm) |
| Roll Length | 5 meters (16.4 ft) |
| Voltage | 24 V DC |
| Type | Vibe X4 analog PWM |
| Warranty | 5 Years |
The Deco Warm Dimming strip provides the same incandescent-style warm dimming behaviour as the Ultra Warm Dimming variant, in the Deco form factor. Suitable for residential and hospitality lighting in decorative extrusions and profiles.

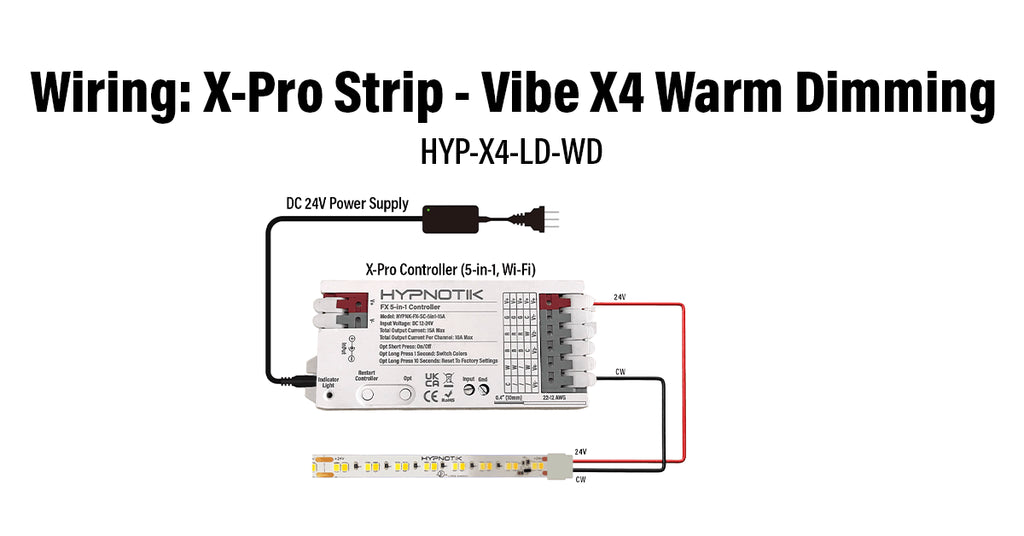

Wiring Diagram
Terminal Connections
| X-Pro Terminal | Strip Wire | Channel |
|---|---|---|
+ |
Strip common +
|
Positive supply |
CH4 |
Warm − (1800K-3000K) |
Warm White channel |
- CH1, CH2, CH3 & CH5 not used.
Step-by-Step Connection
- Power off the controller and power supply.
- Connect common (+) →
+. - Connect 1800K warm (−) →
CH4. - Leave CH1, CH2, CH3 & CH5 empty.
- Power on.
Firmware Settings
Go to Settings → LED Preferences:
| Setting | Value |
|---|---|
| LED Type | PWM CCT |
| Ch4 Pin | GPIO 16 (Warm White) |
| Default CCT | Set to mid-range |
How Warm Dimming Works
The CCT slider in the Colors tab controls the blend between the two channels. At the warm end of the slider, the strip outputs 1800K amber. At the cool end, it outputs 3000K. The transition is smooth and mimics the dimming curve of halogen and incandescent lamps.
