Wiring: Vibe X4 Ultra 2700K / 3000K / 4000K

Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra White | SKU: HYP-X4-LU | Vibe Model: Ultra White

---

Strip Overview

Specification	Value
Easy Name	Ultra White
Color Type	Single fixed white — available in 2700K, 3000K, or 4000K
Channels Used	1
Roll Length	5 meters (16.4 ft)
Voltage	24 V DC
Type	Vibe X4 analog PWM
Warranty	5 Years

The Ultra White is a premium single-channel white strip. Choose the colour temperature to match your space: 2700K (warm), 3000K (neutral warm), or 4000K (cool white). All three variants wire identically.

---

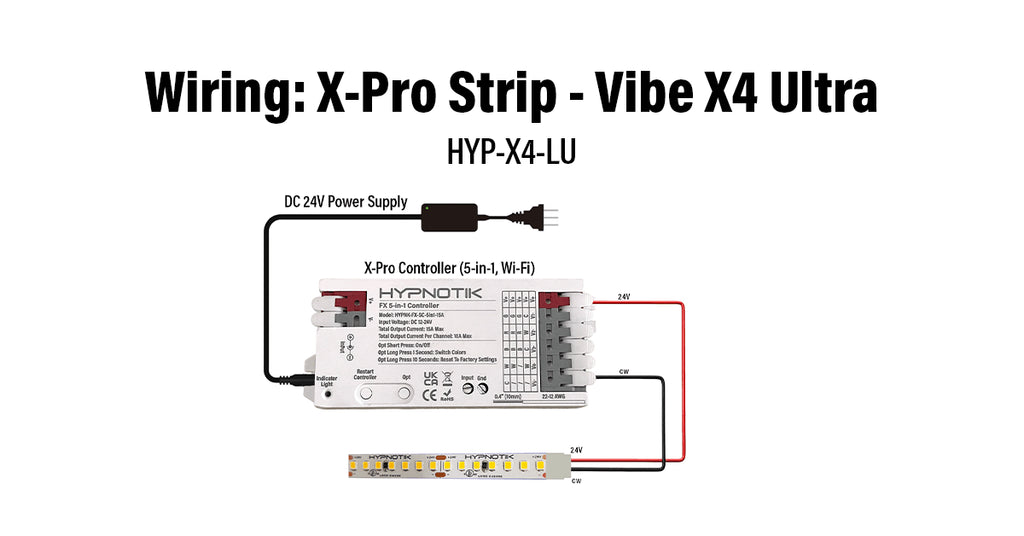

Wiring Diagram

Terminal Connections

X-Pro Terminal	Strip Wire	Description
+ (Common +24 V)	Strip +	Positive supply
CH5	Strip −	White channel PWM

• CH1–CH4 not used.

---

Step-by-Step Connection

1. Power off the controller and power supply.
2. Connect strip + → X-Pro + terminal.
3. Connect strip − → X-Pro CH5 terminal.
4. Leave CH1–CH4 empty.
5. Power on.

---

Firmware Settings

Go to Settings → LED Preferences:

Setting	Value
LED Type	PWM White
Ch5 Pin	GPIO 4
Default CCT	Match your strip variant (2700K ≈ low value, 4000K ≈ high value)
