Wiring: Vibe X4 Ultra COB 2700K / 3000K / 4000K
May 12, 2026
Section: Basic Hardware Setup |
Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) |
Strip: Vibe X4 Ultra Zero-Dot White |
SKU: HYP-X4-LU-COB |
Vibe Model: Ultra Zero-Dot White
Strip Overview
| Specification | Value |
|---|---|
| Easy Name | Ultra Zero-Dot White |
| Color Type | Single fixed white — available in 2700K, 3000K, or 4000K |
| Technology | COB (Chip-on-Board) — Zero-Dot |
| Channels Used | 1 |
| Roll Length | 5 meters (16.4 ft) |
| Voltage | 24 V DC |
| Type | Vibe X4 analog PWM |
| Warranty | 5 Years |
This is the COB (Zero-Dot) version of the Ultra White strip. COB technology eliminates visible LED dots and produces an ultra-smooth, glare-free linear light. Available in 2700K, 3000K, and 4000K — all wire identically.

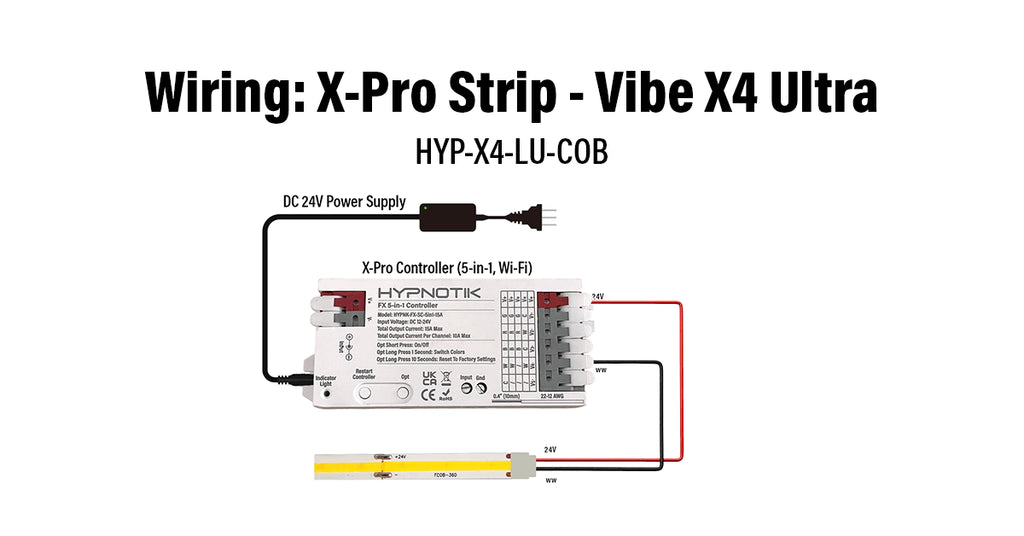

Wiring Diagram
Terminal Connections
| X-Pro Terminal | Strip Wire | Description |
|---|---|---|
+ (Common +24 V) |
Strip +
|
Positive supply |
CH4 |
Strip −
|
White channel PWM |
- CH1, CH2, CH3 & CH5 not used.
Step-by-Step Connection
- Power off the controller and power supply.
- Connect strip + → X-Pro
+terminal. - Connect strip − → X-Pro
CH4terminal. - Leave CH1, CH2, CH3 & CH5 empty.
- Power on.
Firmware Settings
Go to Settings → LED Preferences:
| Setting | Value |
|---|---|
| LED Type | PWM White |
| Ch4 Pin | GPIO 16 |
| Default CCT | Match your strip variant |
Zero-Dot Advantage
Unlike discrete LED strips where each LED is a separate bright point, the COB surface distributes light evenly across the entire strip length. This makes the Ultra COB ideal for:
- Architectural cove lighting where the strip is visible
- Linear fixtures without diffusers
- Installations where a clean, professional look is required
