Wiring: Vibe X4 Ultra RGB + 2700K–6000K

Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X4 Ultra Color + Tunable | SKU: HYP-X4-LU-RGBCW | Vibe Model: Ultra Color + Tunable

---

Strip Overview

Specification	Value
Easy Name	Ultra Color + Tunable
Color Type	RGB + Tunable White (1800K warm + 6000K cool)
Channels Used	5 (R, G, B, Warm White, Cool White)
Roll Length	4 meters (13.1 ft)
Voltage	24 V DC
Type	Vibe X4 analog PWM
Warranty	5 Years



This is the full 5-channel strip: three colour channels (RGB) plus two white channels (tunable warm/cool). It provides the complete colour and colour temperature control possible from a single strip, using all 5 controller channels.

---

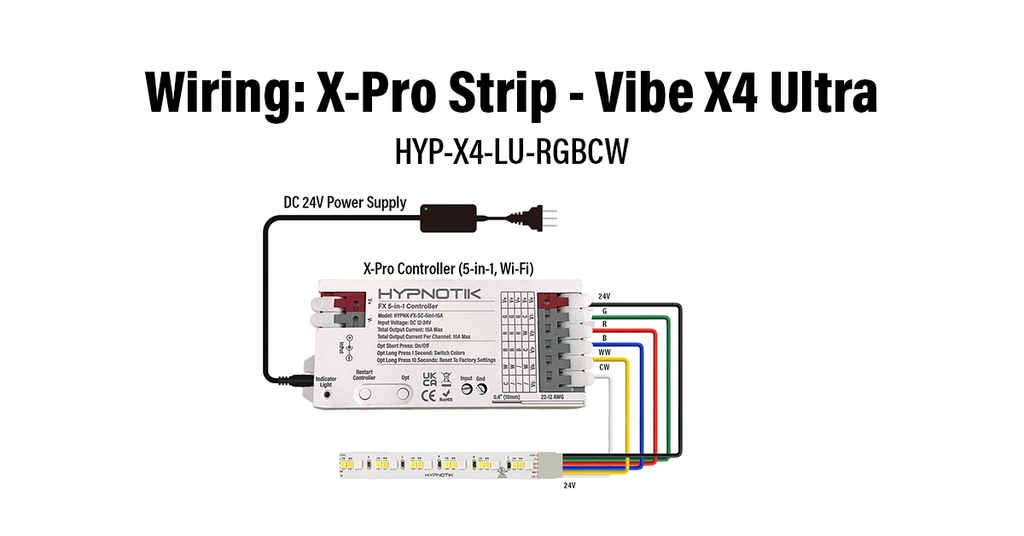

Wiring Diagram

Terminal Connections

X-Pro Terminal	Strip Wire	Channel
+ (Common +24 V)	Strip common +	Positive supply
CH1	Green −	Green
CH2	Red −	Red
CH3	Blue −	Blue
CH4	Warm White −	~2700K warm white
CH5	Cool White −	~6000K cool white

All 5 channels plus the common positive are used.

---

Step-by-Step Connection

1. Power off the controller and power supply.
2. Connect strip common (+) → X-Pro + terminal.
3. Connect Green (−) → CH1.
4. Connect Red (−) → CH2.
5. Connect Blue (−) → CH3.
6. Connect Warm White (−) → CH4.
7. Connect Cool White (−) → CH5.
8. Verify all 6 connections, then power on.

---

Firmware Settings

Go to Settings → LED Preferences:

Setting	Value
LED Type	PWM RGBCCT
Color Order	RGBCW
Ch1 Pin	GPIO 18 (Green)
Ch2 Pin	GPIO 19 (Red)
Ch3 Pin	GPIO 17 (Blue)
Ch4 Pin	GPIO 16 (Warm White)
Ch5 Pin	GPIO 4 (Cool White)

---

Using All 5 Channels

In the Colors tab you can independently control:

• RGB colour via the colour wheel or colour sliders
• CCT (colour temperature) via the CCT slider — blends CH4 and CH5
• White brightness via the white brightness slider

The Color & White Exclusive setting (MXC) controls whether colour and white can be active at the same time.
