Wiring: Vibe X5 Tunable Zero-Dot

Section: Basic Hardware Setup | Controller: HYP-FX-SC-5-IN-1-15A (X-Pro) | Strip: Vibe X5 Zero-Dot Tunable | SKU: HYP-X5-COB-CW | Vibe Model: Zero-Dot Tunable

---

Strip Overview

Specification	Value
Easy Name	Zero-Dot Tunable
SKU	HYP-X5-COB-CW
Color Type	Tunable White — COB Zero-Dot
Channels Used	2 (Warm + Cool)
Roll Length	5 meters (16.4 ft)
Voltage	24 V DC
Technology	COB (Chip-on-Board) — Zero-Dot
Type	Vibe X5 analog PWM
Warranty	5 Years

This strip combines tunable white capability with COB Zero-Dot technology — no visible dots, continuous smooth light output, with adjustable colour temperature. Ideal for high-end architectural installations where both visual quality and tunable white are required.

---

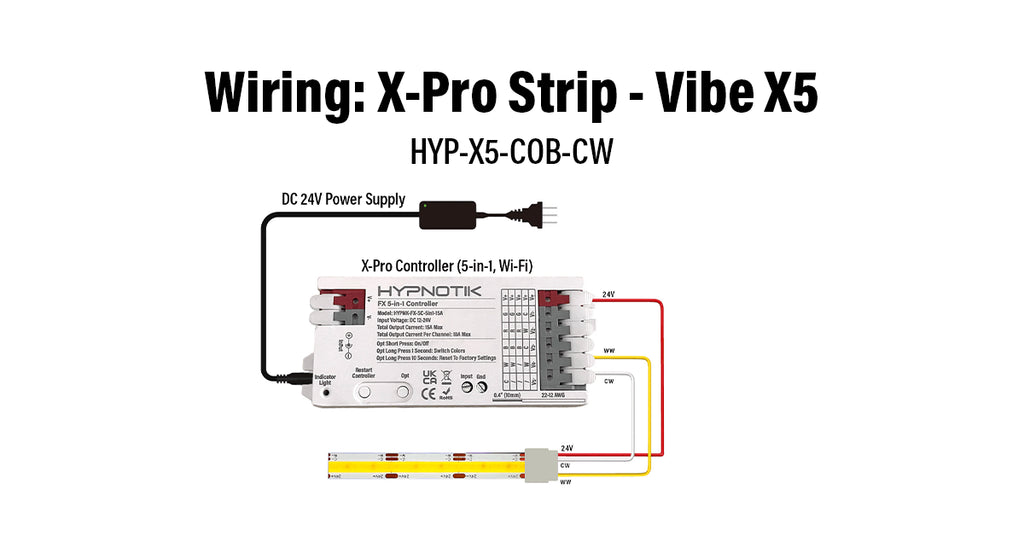

Wiring Diagram

Terminal Connections

X-Pro Terminal	Strip Wire	Channel
+	Strip common +	Positive supply
CH4	Warm White −	Warm CCT channel
CH5	Cool White −	Cool CCT channel

• CH1–CH3 not used.

---

Step-by-Step Connection

1. Power off the controller and power supply.
2. Connect common (+) → + terminal.
3. Connect Warm White (−) → CH4 terminal.
4. Connect Cool White (−) → CH5 terminal.
5. Leave CH1–CH3 empty. Power on.

---

Firmware Settings

Go to Settings → LED Preferences:

Setting	Value
LED Type	PWM CCT
Ch4 Pin	GPIO 16 (Warm)
Ch5 Pin	GPIO 4 (Cool)
Default CCT	Set to preferred default
